MACHINE PARK

MACHINE PARK

Laser Cutting

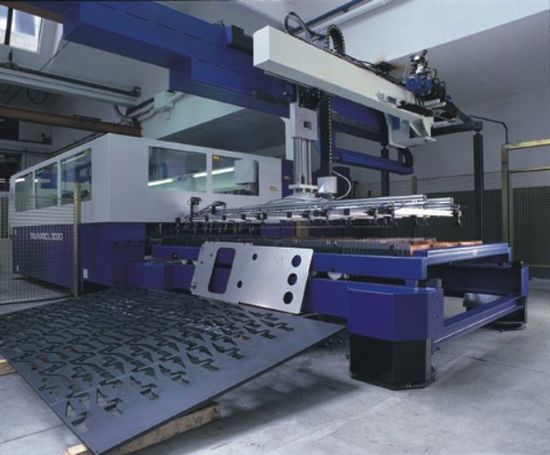

Trumpf-Trumatic L3030

Laser cutting machine "Trumpf-Trumatic L3030"

Max sheet size: 1500x3000

Max sheet thickness (mm):

Steel = 20

Stainless Steel = 12

Aluminium = 6

Punching Machines

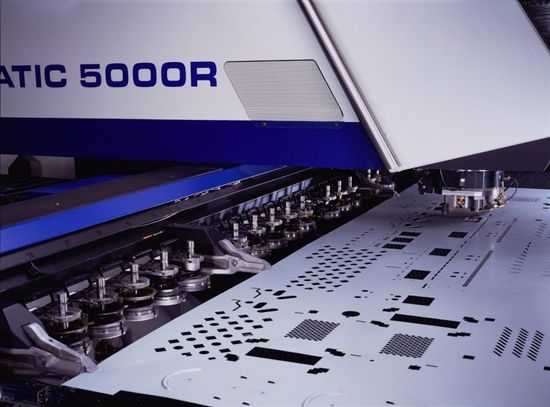

Trumpf-Trumatic 5000R

Punching machine with automatic loading and unloading

Max sheet size: 1640 x 3000

Max sheet thickness (mm):

Steel = 3

Stainless Steel = 3

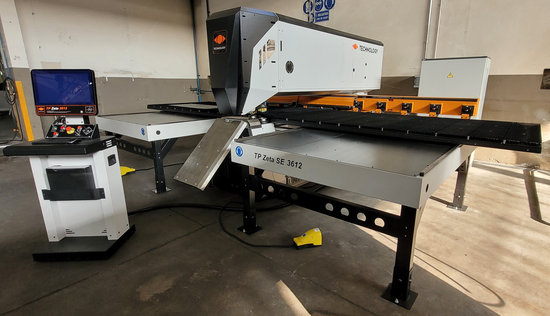

Fully servo-electric punching machine

Punching force: 220/300 kN

Max sheet size: 1500 x 3000

Max sheet thickness (mm):

Steel = 3

Stainless Steel = 3


Bending Machines

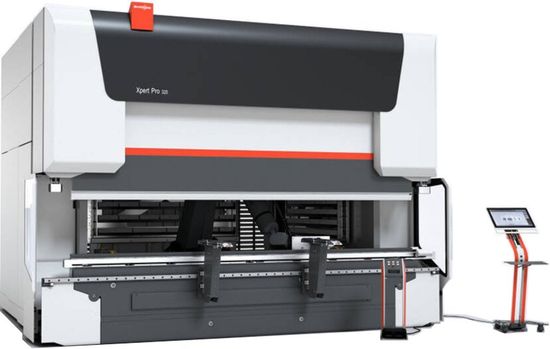

Bystronic Xpert 150/3100:

Next-generation Bystronic bending machine

Capacity: 150 tonnes

Bending length: 3100 mm

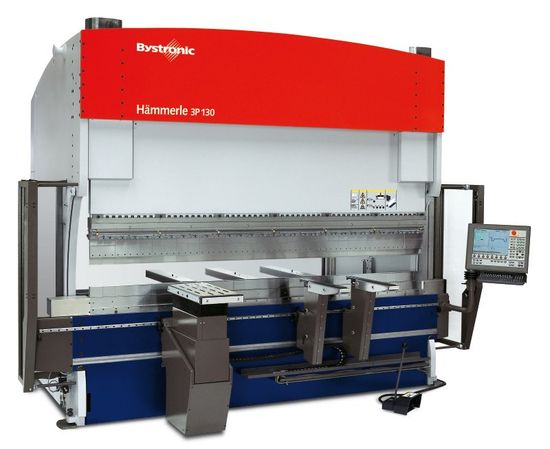

Haemmerle Bending Machines:

Two hydraulic bending machines with capacities from 130 to 200 tonnes

Max bending length: 3000 mm

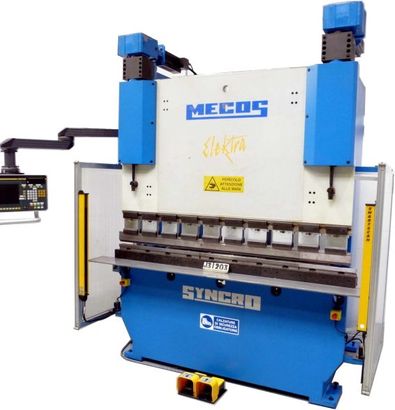

Mecos 40T

Electric bending machine "Mecos 40T"

Max bending length: 1250 mm

Bending without marks possible due to the use of oscillating dies.

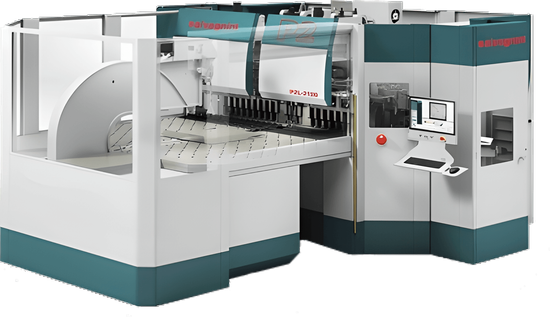

Panel Bender

Next-generation panel bender, extremely flexible and capable of processing even small batches at competitive costs.

Max bending length: 2180 mm

Max diagonal of the piece to be bent: 2500 mm

Max sheet thickness (mm):

Steel = 3

Stainless Steel = 2.5

Aluminium = 4


Blanking and Embossing

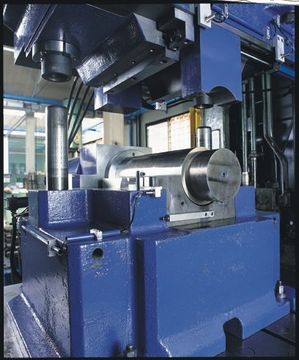

Mechanical Presses:

"Balconi" and "Colombo" mechanical presses from 30 to 250 tonnes for blanking, either in batches or continuously (max strip size 6 mm x 500 mm)

Hydraulic Presses:

"Galdabini" double-effect hydraulic presses from 20 to 300 tonnes.

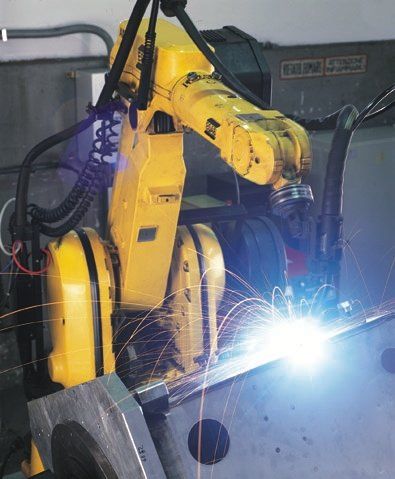

Welding and Spot Welding

Laser Welding

Laser welding machine IPG Photonics LightWELD


Traditional Welding

Manual MIG-MAG-TIG welding stations


Spot Welders

  • Schlatter Spot Welder Sn=10-140KVA
  • Tecna Hanging Spot Welder Sn=23 KVA


Stud Welders

  • HBS -650 A stud welders
  • SOYER capacitor discharge stud welders


Assembly

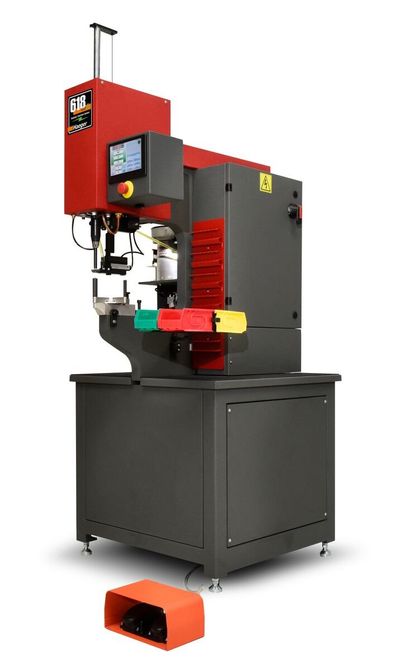

Inserting Machines:

Two "Haeger" presses, 6 tonnes.


Riveting Machines:

Orbital riveting machine "Baltec."


Rivet Guns:

Pneumatic portable rivet guns.


Workbenches:

Workbenches equipped for mechanical assembly.


Tooling:

Equipped for the maintenance of moulds and workshop machines.


Quality Control:

Equipped quality control room.

Quality Control

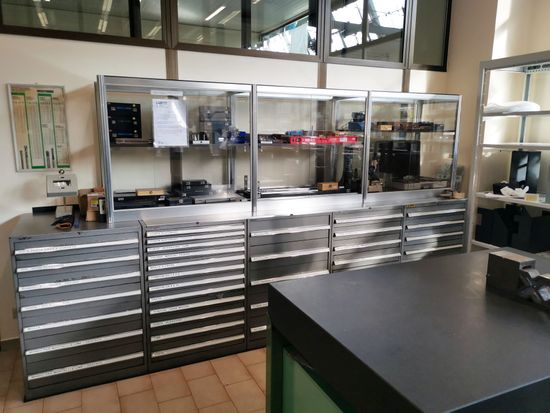

Control Room

To ensure the highest quality in the products we manufacture, we have a quality control room equipped with the best instruments for performing increasingly accurate measurements and checks.

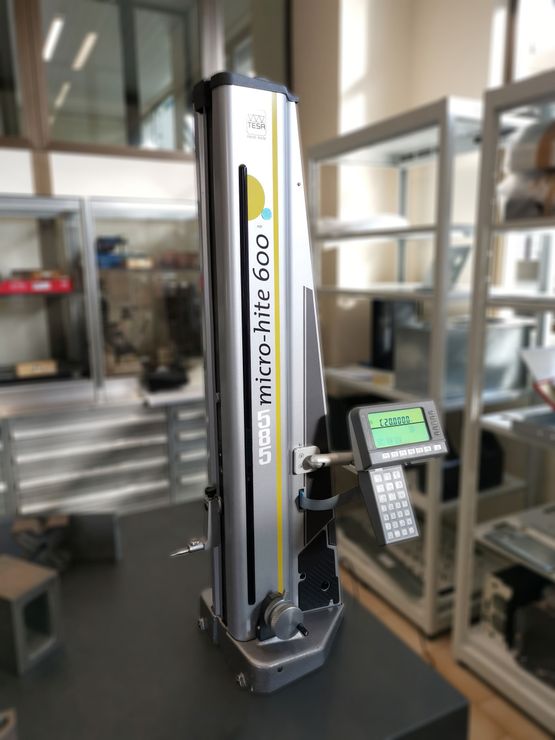

The most important tool for high-precision measurements is the digital altimeter, capable of performing dynamic measurements of the piece with constant measuring force, suitable for measuring internal and external dimensions, steps, heights, distances, and depths.
